We specialize in the full lifecycle of RF engineering—from intricate chip-level design to complex module integration. With 1,000+ off-the-shelf products development experience, we understand that unique projects often require unique specs. Our R&D team provides::
- Die-level
& Packaged Chip options (QFN, Ceramic, Hermetic).
- SiP
(System-in-Package) integration for miniaturization.
- Strict
Screening: Environmental stress screening (ESS) for military-grade reliability.

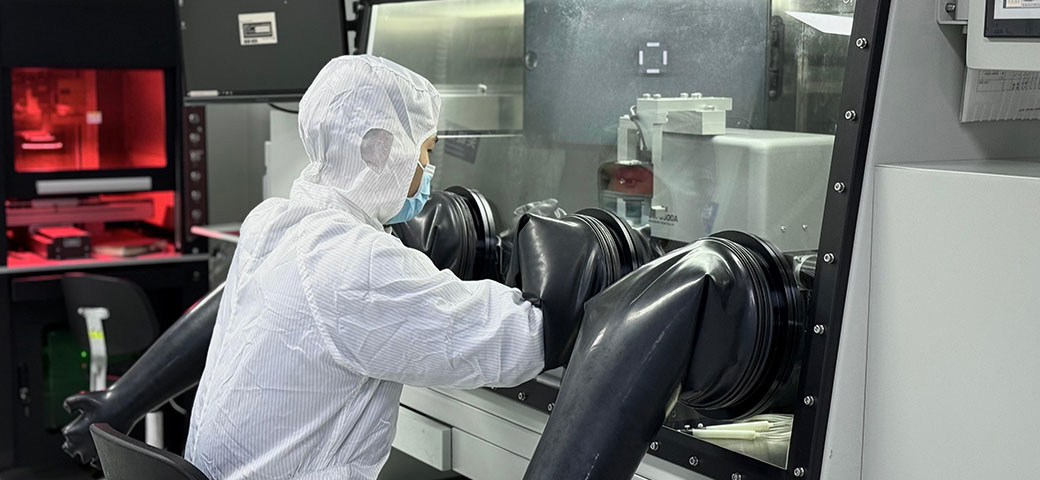

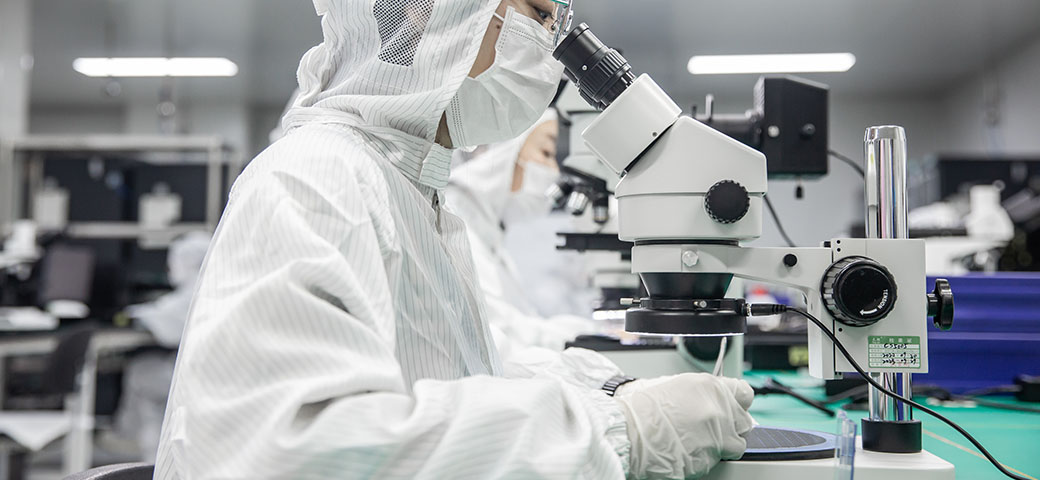

Backed by a 2,000㎡ high-spec ESD-protected, class 1000 cleanroom, our advanced Reliability
Verification Center is equipped with over 80 sets of sophisticated test systems.
Capabilities span :
Device Validation
Chip Co-Design
Wafer Testing & Storage
Product-Level Reliability Testing & Analysis
Board-Level Device Evaluation & Application Development
